Free Sample Mini Size Fast Ethernet 4 Port 48V PoE Switch Outdoor Network Switch

FOB Reference Price:Get Latest Price
US $16-21 / Pieces | 1 Piece/Pieces Free Sample Mini Size Fast Ethernet 4 Port 48V PoE Switch (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 201 - 300 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 31 - 40 People
  • Production Certification: 1
  • Trademark: 1
Trade Capacity >
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Ports:
4 +1
Transmission Rate:
10/100Mbps
Function:
POE
Communication Mode:
Full-Duplex & Half-Duplex
Certification:
CE FCC Rohs
Switch Capacity:
1G
Brand Name:
HORED/Neutral/OEM
Model Number:
PS504
Place of Origin:
Guangdong, China (Mainland)
Material:
Metal Case
OEM:
Yes
Warranty:
1 year
Power Adapter:
60/96W External Power
PoE Standard:
IEEE802.3af/at
Connector Type:
4x 10/100Mbps RJ45 Ports
PoE Ports:
1-4 Port Support PoE
Uplink:
1 10/100mbps Rj45
Dimensions:
92*82*22mm
Product Name:
4 Port PoE Switch
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month Free Sample Mini Size Fast Ethernet 4 Port 48V PoE Switch
Packaging & Delivery
Packaging Details
32PCS/CTN GW: 25KGS/CTN
CTN SIZE: 625*525*265MM
PS504 PoE switch, power cord, user manual
Packed by Bandbox lined with EPE neutral box
Port
Shenzhen
Lead Time :
-3 days for sample; 1-3 weeks for bulk order

Free Sample Mini Size Fast Ethernet 4 Port 48V PoE Switch Outdoor Network Switch

Product Description



PS504, 4+1 Port 100Mbps PoE Switch, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers 4 100Mbps PoE port which supply 15.4 watts of power per port for devices such as high power wireless access points, and VoIP telephony systems.



Auto sensing technology delivers 15.4 watts to 802.3af/at PoE devices. It reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 1 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case.



Features

IEEE 802.3af/at Power over Ethernet standard

Supports 10/100Mbps fast Ethernet

4 x 100Mbps Auto-MDIX PoE ports

Automatically detects the PoE class level of a Powered Device

1Gbps bandwidth

Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

Status LEDs: System Power, PoE, and Link / Activity

Full wire-speed non-blocking reception and transmission

Store-and-forward switching method

Back pressure Flow Control for Half-Duplex mode

IEEE 802.3x Flow Control for Full-Duplex mode

Power saving technology powers down unused ports and when a connected device is in standby mode

Plug and Play

Sturdy rack mountable metal case

Easy installation and use, no need to convert by software and network protocol

1-year limited warranty



Technical Specification

Hardware

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af/at Power over Ethernet (PoE)
IEEE 802.3x Flow Control

Ports

4x100M Auto-MDIX PoE / PoE+ RJ-45 ports

Data Transfer Rate

Ethernet: 10/100 Mbps (Half / Full Duplex)

Forwarding Rate

100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps

Switch capacity

1Gbps

Power

100-240 V, 50/60 Hz

LED indicator

Power, PoE, Link / Activity

Power Consumption

Min: 8 Watts (standby)

Max: 48 Watts

Temperature

Operating: 0° ~ 45°C (32° ~ 113°F)

Storage: -20° ~ 90°C (-4° ~ 194°F)

Humidity

Max 90% (non-condensing)

Dimensions

92*82*22mm

Weight

0.7kg

Certifications

CE, FCC ROHS

PoE

Power over Ethernet

Up to 30 watts for PoE
PoE: pin 3,6 for power- and pin 1,2 for power+

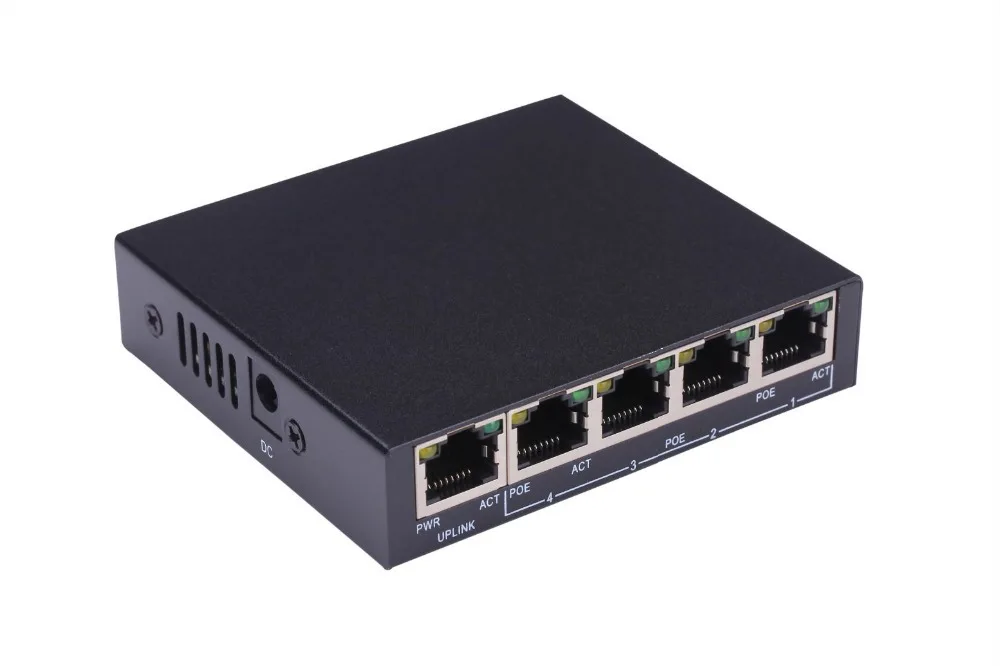

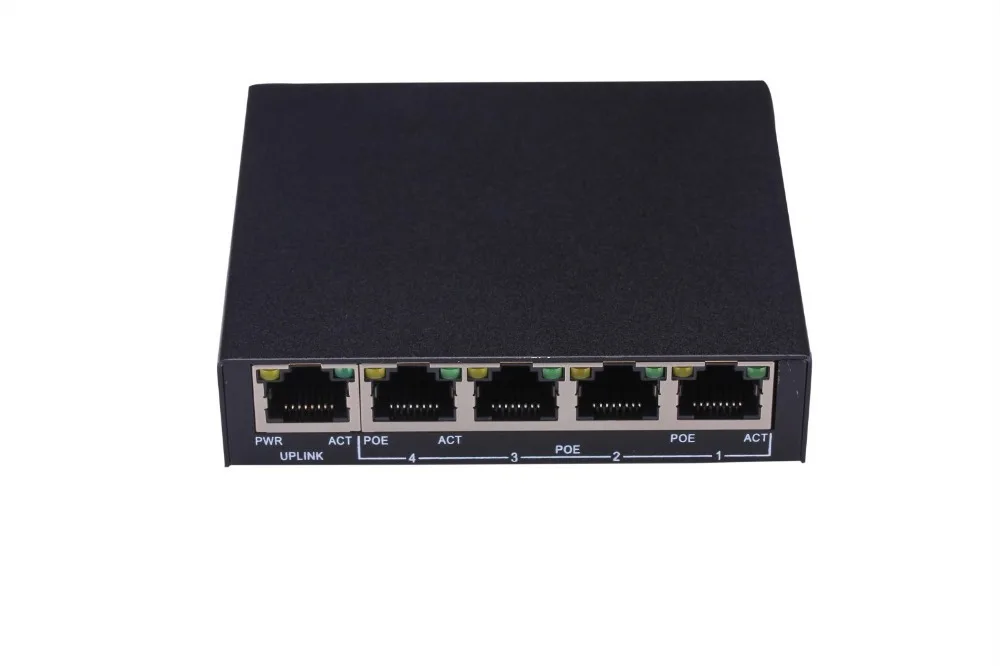

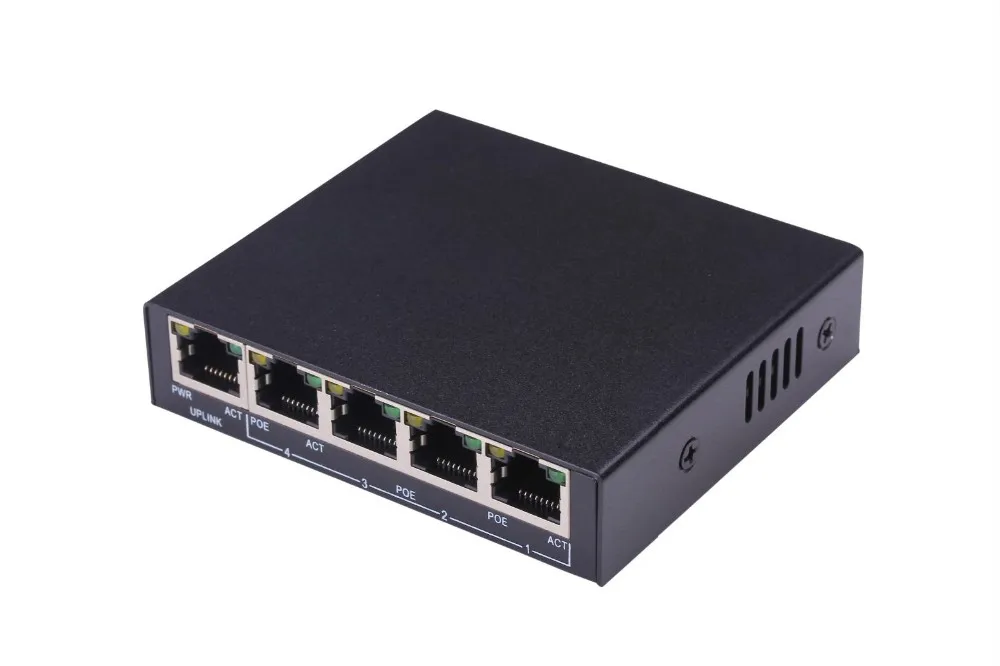

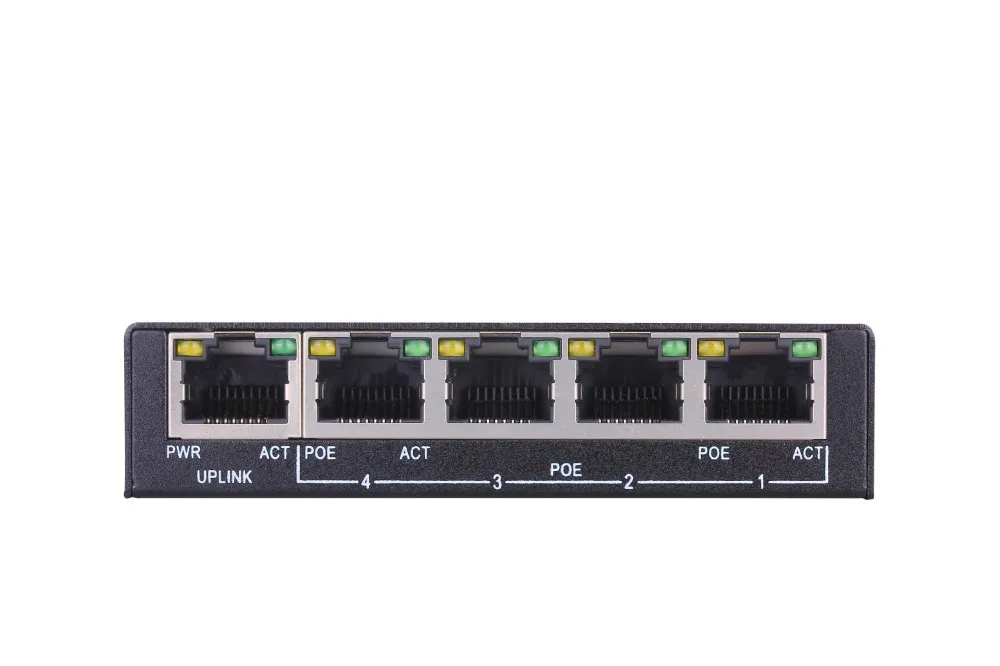

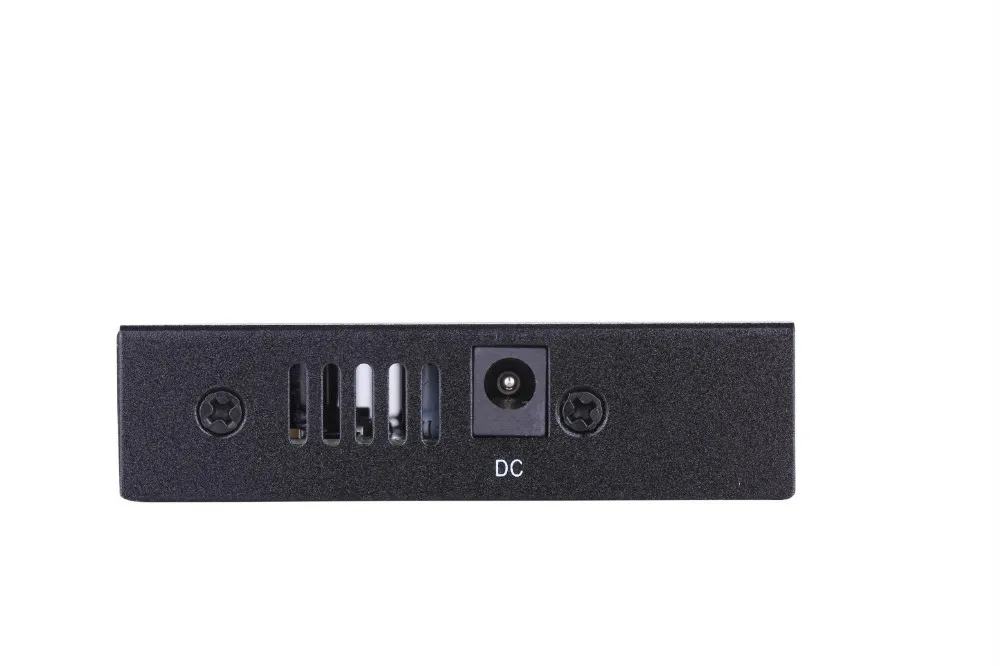

Detailed Images





















Certifications











Company Information

Shenzhen Fengrunda Technology Co., Ltd (HORED) is a global leader in PoE devices supply. Established in 2006, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.



We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED  is a worldwide leading brand in network and communication field.



Factrory/Product line/Testing room Picture





Oversea Exhibition







Packaging & Shipping
Payment term: EXW shenzhen
Payment method: T/T in advance, Western union, Paypal
Packing method: Packed in boxes into cartons
Shipping Method: By express, sea and air







FAQ



1). OEM/ODM Service: Customized package/front panel/label(your logo and model).
2). Quality&RMA: Good quality control system, 100% test before shipment, RMA less than 1%
3). After service: One year warranty, will replace new parts for RMA if it is within warranty
4). Fast delivery:  Sample within 2 day; Mass order depends on order quantity.
5). MOQ: 1pcs also welcome

Contact me, more information will be offered !
Skype: fengrunda-sales5
Email: sales5[at]poetech.net
