2000 Piece/Pieces per Month 2 Gigabit uplink 8 Port 10/100Mbps PoE switch support vlan 250m
Packaging & Delivery
Packaging Details
10PCS/CTN
CTN SIZE: 505*310*265MM
GW: 14KGS/CTN
Packed by Bandbox lined with EPE neutral box
Port
Shenzhen
2 Gigabit uplink 8 Port 10/100Mbps PoE switch support vlan 250meter extend
Product Description
PS2082G is a 8-port Fast Ethernet POE Switch with 2 GE Port, it has three working modes, Standard Mode, Extend Mode, VLAN Mode. In Standard Mode, all ports support freely communicating, applicable for common data transmission environment. In Extend Mode, ports 1-8 support 250 effective meters, applicable for long range surveillance and power supply. In VLAN Mode, ports 1-4 are isolated from each other, support suppressing network storms and improving network performance.
PS2082G supports the standard IEEE 802.3af/at protocol, which can automatically detect and identify the PD devices and supply power, therefore, Don not worry about PoE or non-PoE devices that can damage private standards.
Key features
Support One key Extend, ports 1-8 support 250 effective meters (Cat.5 or above)
Support One key VLAN, ports 1-4 isolation for network security
Support standard IEEE 802.3 af/at protocol, automatically detect and identify the PD devices comply with IEEE 802.3 af/at protocol and supply power.
Support upward port auto MDI/MDIX.
Adopted storage forward switching system.
Smart power and minimum consumption, guarantee PD requirement.
power supply circuit protection function and protection back-end device safety
Automatically provide the adaptive device
Fanless design realize saving energy and environment protection
Support saving power function when port dis-connection
All Ports support Wire-speed forwarding capability
Plug and play, easy using without configuration.
Technical Specification
Network Port
·8 10/100Mbps PoE RJ45 port(port 1~port 8)
· 2 100/1000Mbps Non-POE RJ45 port(port 9 ~ port 10)
Transfer Rate
· 100Mbps full Duplex, 10 or 100Mbps Half Duplex
· Network interface: 10BASE-T or 100BASE-TX Ethernet RJ-45 port
Performance
· Bandwidth: 5.6Gbps (no block)
· Frames filter and transfer rate:
10M port maximum 14,800pps
100M port maximum 148,800pps
Network protocol and standard
· IEEE 802.3i 10BASE-T
· IEEE 802.3u 100BASE-TX
· IEEE 802.3x Flow Control
· IEEE 802.3af/at Power over Ethernet
Power pin
1/2(+), 3/6(-);
LEDs indicator
· Power
· LINK/ACT, PoE
Power
· Total power: 96W
· Single port maximum output power: 30W
Dimensions
· Size(LxWxH): 184mm x 94mm x 27 mm
· Weight: 1.35kg
Environment
· Operating Temperature: 0°~45°C(32°~113°F)
· Storage Temperature: -20℃~90℃(-4°~194°F)
· Working Humidity: 10%~90% (Non-condensing)
· Storage Temperature: 5%~90% (Non-condensing)
EMC
· CE Class B
· FCC Part 15, Class B
· VCCI Class B
· C-Tick
Certifications
· CE/FCC/RoHS
Warranty
· 1 year

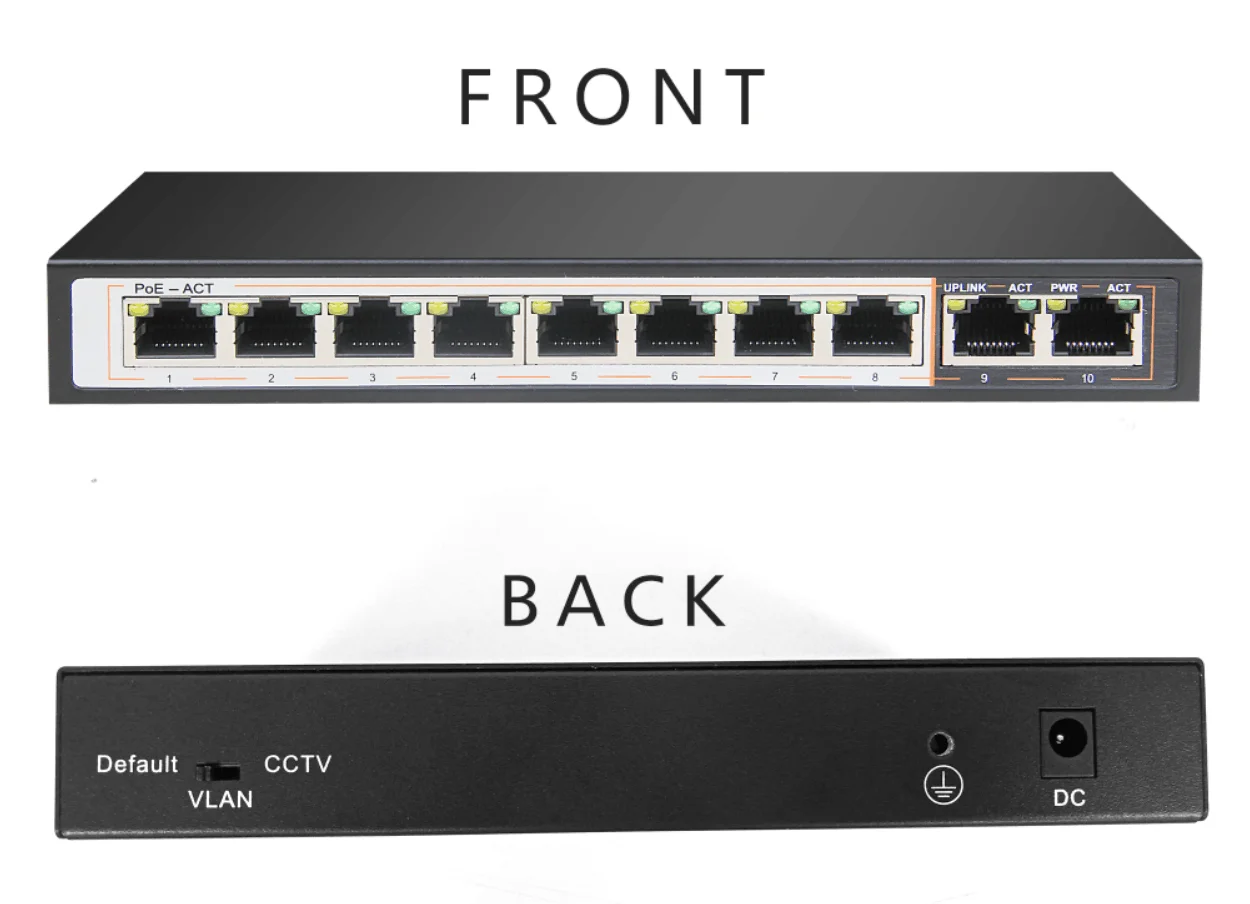

Detailed Images
Certifications
Company Information
Shenzhen Fengrunda Technology Co., Ltd (HORED) is a global leader in PoE devices supply. Established in 2006, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.
We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field.
Factrory/Product line/Testing room Picture
Oversea Exhibition
Packaging & Shipping
Packing: Packed by neutral or customized Bandbox
Shipping: By sea, by air or by express(DHL, UPS, Fedex and TNT)
FAQ
A.What's the after-sale service? a.One year warrnty or negotiable
B.Why choose Fengrunda (HORED)? a.Prompt delivery and remarkable services b.Competitive selling prices c.Rich experience of OEM&ODM co-operation , accept orders according to coustomers demands d.We have R&D team, our product has been approved by IOS9001, CE, FCC and ROHS etc.
C.How about Minimum Order? a.To satisfy customer's requirements, we accept sample oder, even one piece
If you want to know more about this, pls contact me . Skype: fengrunda-sales5 Email: sales5[at]poetech.net
