Quick Details

  • Products Status: Stock
  • Ports: 4 +1
  • Transmission Rate: 10/100Mbps
  • Function: POE
  • Communication Mode: Full-Duplex & Half-Duplex
  • Certification: CE FCC Rohs
  • Switch Capacity: 1G
  • Brand Name: Hored/Neutral/OEM
  • Model Number: PE604
  • Place of Origin: Guangdong, China (Mainland)
  • Color: Blue
  • Material: Metal
  • OEM/ODM: Yes
  • Warranty: 1 year
  • Power Adaper: 60W/96W External Power
  • Connector Type: 4x 10/100Mbps RJ45 Ports
  • PoE Ports: 1-4 Port Support PoE
  • Uplink port: 1 100Mbps Uplink
  • Power Pin: 45(+), 78(-)
  • Product Name: 4 Port PoE Switch

Packaging & Delivery

Packaging Details 32PCS/CTN GW: 24KGS/CTN
CTN SIZE: 625*525*265MM
Packed by Bandbox lined with EPE neutral box
Delivery Time 1 day for sample; 5-15 days for bulk order

Fast Ethernet Switch 4 Port Passive PoE Switch 24V For Hikvision IP Camera

Product Description



Key Features

§ Supports 10/100Mbps fast Ethernet

§ 4 x 100M bit Auto-MDIX PoE ports

§ External power supply

§ Automatically detects the PoE class level of a Powered Device

§ 1Gbps bandwidth

§ Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

§ Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity

§ Full wire-speed non-blocking reception and transmission

§ Store-and-forward switching method

§ Back pressure Flow Control for Half-Duplex mode

§ IEEE 802.3x Flow Control for Full-Duplex mode

§ Power saving technology powers down unused ports and when a connected device is in standby mode

§ Plug and Play

§ Sturdy rack mountable metal case

§  Easy installation and use, no need to convert by software and network protocol

§ 1-year limited warranty



Technical Specification

Hardware

Ports

4x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports

Data Transfer Rate

§ Ethernet: 10/100 Mbps (Half / Full Duplex)

Forwarding Rate

100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps

Data RAM Buffer

96 K bytes

Address Table

1K MAC entries

Switch Fabric

1Gbps

Power

100-240 V, 50/60 Hz

Diagnostic LEDs

Power, PoE, Link / Activity

Power Consumption

§ Max: 72 Watts

§ PoE Max: 60 Watts

Temperature

§ Operating: 0° ~ 45°C (32° ~ 113°F)

§ Storage: -20° ~ 90°C (-4° ~ 194°F)

Humidity

Max 90% (non-condensing)

Dimensions

90 x 80 x 20 mm

Weight

0.7 kg

Certifications

CE, FCC ROHS

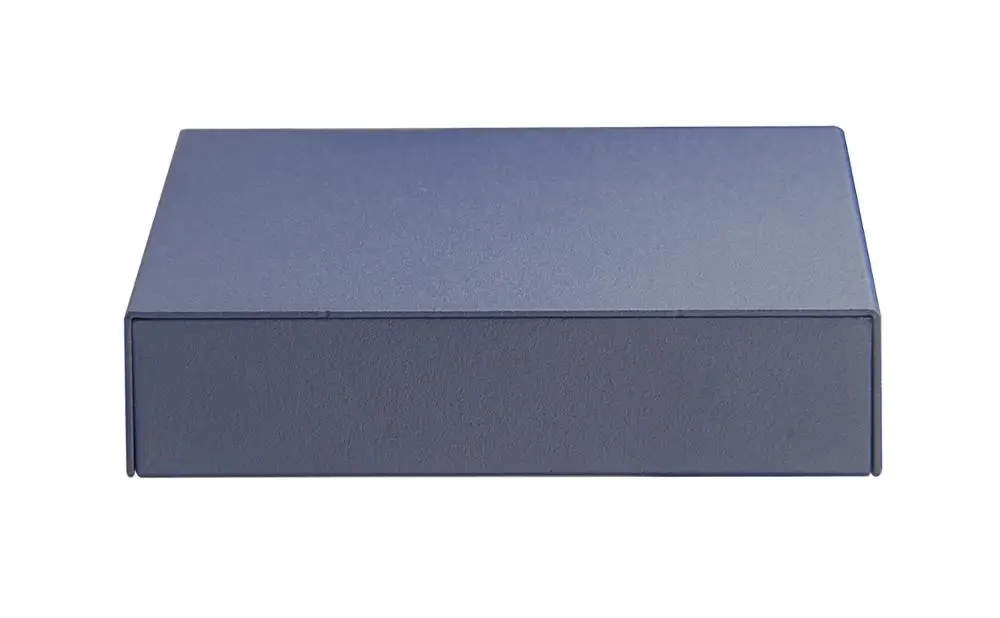

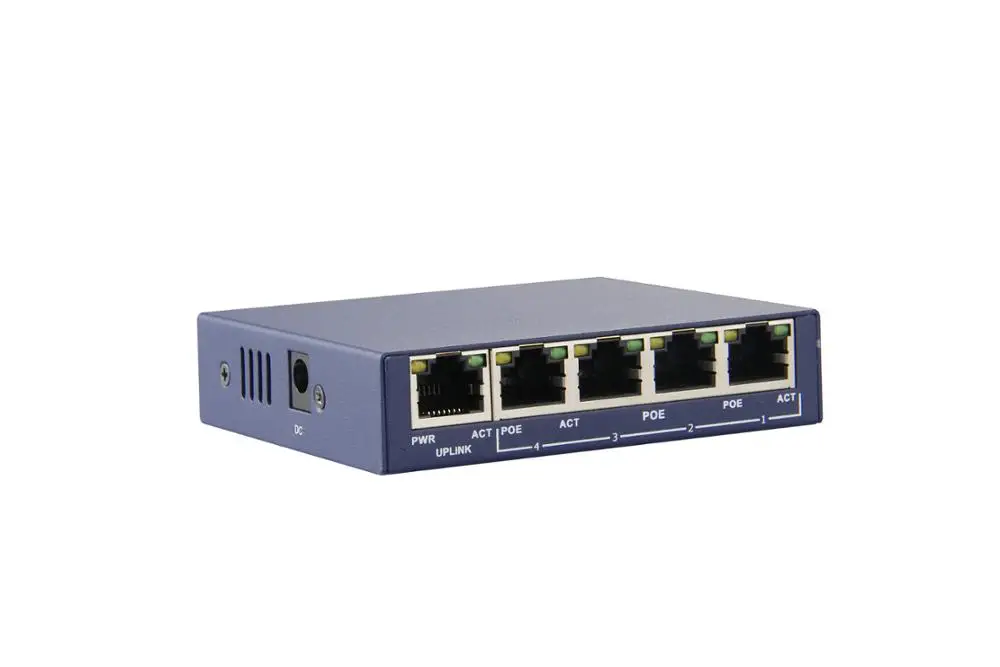

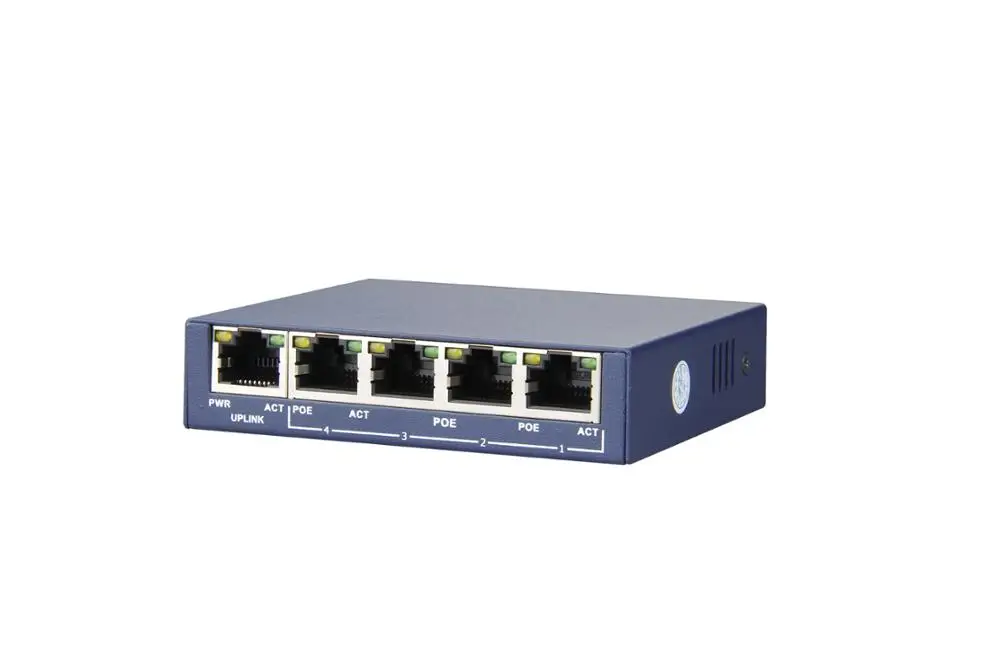

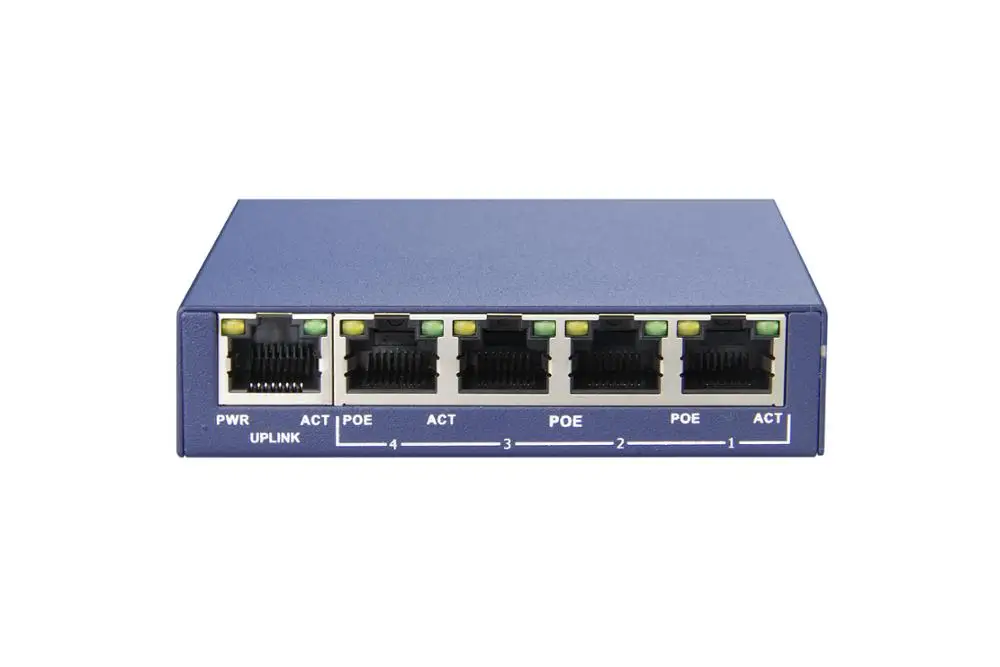

Detailed Images









Packaging & Shipping





Oversea Exhibition







FAQ



1). OEM/ODM Service: Customized package/front panel/label(your logo and model).
2). Quality&RMA: Good quality control system, 100% test before shipment, RMA less than 1%
3). After service: One year warranty, will replace new parts for RMA if it is within warranty
4). Fast delivery:  Sample within 2 day; Mass order depends on order quantity.
5). MOQ: 1pcs also welcome

Contact me, more information will be offered !
Skype: fengrunda-sales5
Email: sales5[at]poetech.net
