HORED Dual-Band 1200Mbps Wireless Access Point Ceiling Mounted Access Point

FOB Reference Price:Get Latest Price
$48.00 - $57.60 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HORED/OEM/Neutral
Model Number:
RD-W168AP
Frequency:
2.4Ghz & 5.8Ghz
Support:
AC Management
Certification:
CE FCC RoHS
Standard:
IEEE 802.11 a/b/g/n/ac
Transmission Rate:
1200Mbps
RJ45 port:
2
Power supply:
Standard 48V PoE power supply
Management:
web page management & AC Controller
Installation Method:
Ceiling/Wall Mounting
Dimension:
189mm*189mm*38mm
Supply Ability
Supply Ability:
8000 Piece/Pieces per Week 192.168.169..1 wireless router 300Mbps Wireless Ceiling AP
Packaging & Delivery
Packaging Details
Packed by Bandbox lined with EPE neutral box
Port
Shenzhen

HORED Dual-Band 1200Mbps Wireless Access Point Ceiling Mounted Access Point

> Wireless Access Points

> Dual-band Wireless Access Points

> Wireless Access points Ceiling

> Ceiling Mounted wireless access points

> Wireless Access points Ceiling AP

> Ceiling Mounted wireless AP

> FCC/CE/RoHS certified



>>> Overview:



RD-W168AP wireless access point is designed for wireless coverage with high-capacity and high-bandwidth. It is suitable for medium and large hotels, companies, bars, and cafes. RD-W168AP can operate in the 2.4GHz and 5G frequency bands at the same time, and the wireless rate can reach 1200Mbps. The product has four built-in high-gain omnidirectional antennas, which has powerful WIFI signal penetration and coverage without dead angle. The device uses 128M large memory, and support 70 users. It is based on a ceiling-mounted design, elegant appearance. The built-in ceiling mounting accessories can be mounted directly on the wall and ceiling. It supports standard PoE (802.3af/at) power supply, convenient networking.



>>> Technical Parameters:







Working frequency band

2.4GHz
5GHz

Wireless speed rate

1200Mbps

Installation Method

Ceiling/Wall Mounting

Dimension

189mm*189mm*38mm

Port

210/100M RJ45 port

1DC port

Indicator

1 system indicator

1*2.4G indicator

1*5G indicator

Service indicator

Indicator can be turned off

Antenna

Built-in antenna

Button

1Reset button

Power supply

802.3af/at standard power supply

12VDC power supply(Not included in package)

Maximum overall power consumption

8W

Management

HORED AP controller(AC)

Unified Management

Separate web page management, Telnet

SSID Quantity

8

Chinese SSID

Support

Wireless Function

SSID broadcast: Support

Wireless encryption:WPA,WPA2,WPA-PSK,WPA2-PSK

User isolation: isolation between wireless networks and internal isolation of AP

Wireless MAC address filtering: support

Wireless client limit: support

Kicking off weak signal equipment, prohibiting weak signal equipment access: support

System Management

System Management: English

System Log: Support

Restore Factory Settings: Support

Backup configuration: support

Import configuration: support

Software Upgrade: Support

Watchdog: Support

Working environment

Operating temperature:0℃~40℃

Operating Humidity:10%~90%RH Non-condensing

Storage temperature:-40℃~70℃

Storage humidity: 5% to 90% RH non-condensing

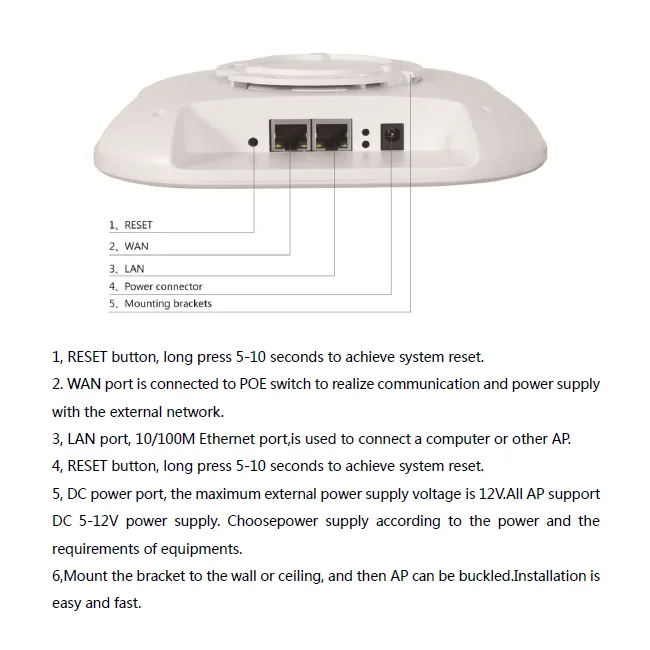

>>> Detail Pictures:







>>> Configuaration Setup:











>>> Demo Application:
