HORED 2.4g Wall-pannel Wireless access points WIFI Coverage

FOB Reference Price:Get Latest Price
US $14-18 / Pieces | 1 Piece/Pieces Hotel access point wifi 300Mbps 2.4G Wireless Wall-mounted AP (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HORED/OEM/Neutral
Model Number:
RD-W15AP
Color:
White/Gold
Frequency:
2.4Ghz
Support:
AC Management
Standard:
IEEE 802.11b/g/n
Transmission Rate:
300Mbps
Chipset:
MTK
RJ45 port:
1 10/100Mbps
PoE:
Support
Application:
Hotel, Restant, Office
Installation Method:
in-wall mounted, ceiling mounted
Supply Ability
Supply Ability:
8000 Piece/Pieces per Week Hotel access point wifi 300Mbps 2.4G Wireless Wall-mounted AP
Packaging & Delivery
Packaging Details
Packed by Bandbox lined with EPE neutral box
Port
Shenzhen
Lead Time :
1 day for sample; 5-15 days for bulk order

Hotel access point wifi 300Mbps 2.4G Wireless AP in-wall pannel type

> wireless access points

> Access points WIFI

> in-wall wireless AP

> in-wall access points

> in-wall access points WIFI

> in-wall access points wireless

> CE/FCC/RoHS approved



Product Description



W15AP is based on the IEEE802.11b/g/n standard of wireless access point device, it is suit for hidden wireless coverage or complex hotel, providing convenient and fast WLAN service for user. Built-in 2dbi gain

antenna,providing max.300Mbps for wireless user and downward compatibility IEEE802.11b/g device, adopted the standard 86 box wall-in style design. Built-in USB battery charging, wired,wireless,  telephone line

all in one.support IEEE802.3af standard PoE,just only need one piece of network cable realize  supplying power and data transmission of AP. The typical wall-in design and PoE technology is convenience for user

to extend wireless network.it is the first choice for indoor wireless coverage of home and hotel public places, the design for coverage room quanity is 1-3 pieces.





> Specifications



Standard protocol

IEEE802.3af, IEEE 802.11ab, IEEE 802.11b, IEEE802.11g,

IEEE 802.11n, CSMA/CA

Port

Port

1 10/100Mbps self-adaptive RJ45 port(Auto MDI/MDIX) 1 port is RJ11

Wireless parameter

Frequency range

2.412~2.4835 GHz

Transmission rate

11b:1/2/5.5/11 Mbps

11g:6/9/12/18/24/36/48/54 Mbps

11n:max.150 Mbps

Working Channel

2.4GHz frequency band 1-13 is optical

SPSP technology

DSSS(direct series spread spectrum)

Data modulation way

11n/g:QPSK,BPSK,16-QAM,64-QAM,256QAM for OFDM

11b:CCK,QPSK,BPSK;

Medium access protocol

CSMA/CA with ACK

Data encryption

WEP;WPA/WPA2;WPA-PSK/WPA2-PSK

Transmitted power

2.4G:15 dBm(maximum)

Antenna quantity

Built-in 1pc antenna

Antenna type

Built-in orientation 2.4GHz  PCB single frequency antenna

network medium

10Base-T:Cat.3 or above Cat.3 UTP

100Base-TX:Cat.5 or above Cat.5 UTP

LED indicator

Port

(system state and power indicator combo)

Others

LAN port indicator

Installation type

Wall-in

Environment

Working temperature:0-40 °C

Storage temperature:-40-80 °C

Working humidity:10%-90% RH non-condensing

Storage humidity:5%-90% RH non-condensing

LAN/PD combo port

100Mbps RJ45 port, communication with the upward layer

and providing power port



> Installation Guide

1.Ethernet cable line sequence

Adopt binding post instead of RJ45 port, user need to put the Ethernet cable line sequence corresponding with

binding post before installation.



Photo shows  that the binding post line sequence from left to right is 5,4,2,1,6,3,8,7,the  Ethernet cable line

sequence  take turns white-blue, blue, orange,white-orange, green,white-green, white-brown,brown.



2.Port description

W25AP each port description as below, please refer to introduction for using.



1,USB port,5V 1A output power.

2,RESET key,press 8 seconds can realize system reset.

3,State display panel, displaying product using state.
 4,Telephone line port is convenient for telephone line connection.

5,LAN port, 2 RJ45 LAN port is convenient multi user connection.



Detailed Images






Application Pictures

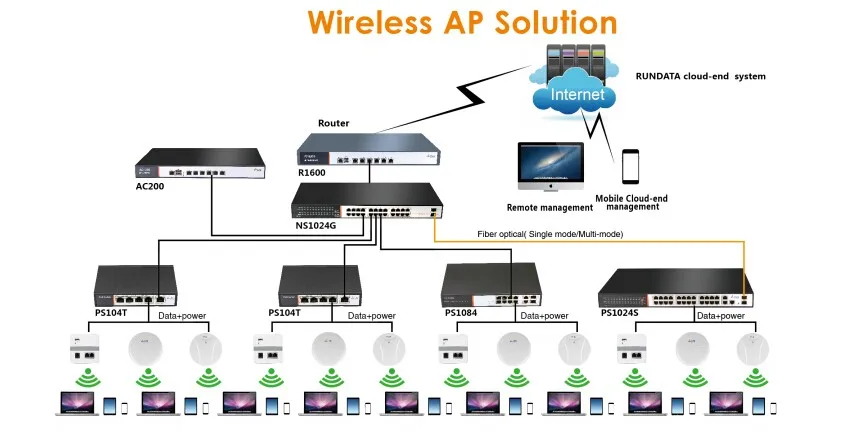

Wireless AP Solution.jpg





Certifications










Oversea Exhibition



.jpg



Company Information

Shenzhen Fengrunda Technology Co., Ltd (HORED) is a global leader in PoE devices supply. Established in 2006, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.



We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED  is a worldwide leading brand in network and communication field.



Factrory/Product line/Testing room Picture

2.20 Factory



2.20 Test





Packaging & Shipping

Packing: Packed by neutral or customized Bandbox



Shipping: By sea, by air or by express(DHL, UPS, Fedex and TNT)



2.20 Shipment
