Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Neutral/Hored/OEM
  • Model Number: PD802
  • Color: Black
  • Material: Plastic
  • Output: 12V
  • Input: 40-57V
  • Output Power: 12W
  • Warranty: 1 year
  • PoE Standard: IEEE802.3af
  • Certification: CE, FCC, RoHS
  • Transmission Rate: 10/100Mbps
  • Product name: PoE Splitter

Packaging & Delivery

Packaging Details Packed by Bandbox lined with EPE neutral box
Delivery Time 1 days for sample, 5-15 days for bulk order

Dual RJ45 Power Passive 100Mbps PoE Injector PoE Splitter Module



Overview

PD802, 12W PoE splitter,it is an economical and practical PoE remote power equipmentwith excellent performance and developed in accordance with the IEEE802.3af standard. Connect PoE injector or af standard

PoE switch by Cat5 cables.



PD802 model output two tranches voltage of 12V with the power supply equipment (PoE injector)

It helps to expand home networks, office networks, and is not restricted by layout of power line.



Key Features

Product Model

Product Description

PD802

12W PoE PD Splitter

1) Support the IEEE 802.3af the Power over Ethernet standard.

2) Support 10/100Mbps data transmission.

3) PD receiving end supports a variety of voltage of 12V-48V transfer, user-friendly UPS DC power supply.

4) Provide 12V voltage to adapt to a variety of small network equipment.

5) Circuit isolation protection, effective protection of electrical equipment.

6) High quality design, guarantees the stability and reliability of the equipment in work.



Technical Specification

POE Parameters

1) Maximum Power: 15.4W (IEEE 802.3af)

2) Input voltage :40-57V   Output voltage: 12V

3) PoE:  1236pin

Connect Port

1) Input: an input RJ45 interface

2) Output: an output RJ45 connector and a DC output interface

3) Data transfer rate: 10/100Mbps

4) The maximum transmission distance: 100 meters

Network standards

IEEE802.3i 10 BASE-T,

IEEE802.3i 100 BASE-TX,

IEEE802.3x flow control

IEEE802.3af standard

LED indicator

PoE, DC output

Output

12V

Certificate

CE,FCC,ROHS

Working Term.

0°C-50°C

Storage Term.

-10°C-70°C

Operating Humidity

20%-85%,Non-condensing

Size

84*23*24 mm (L*W*H)

Weight

0.1kg

Warranty

One year

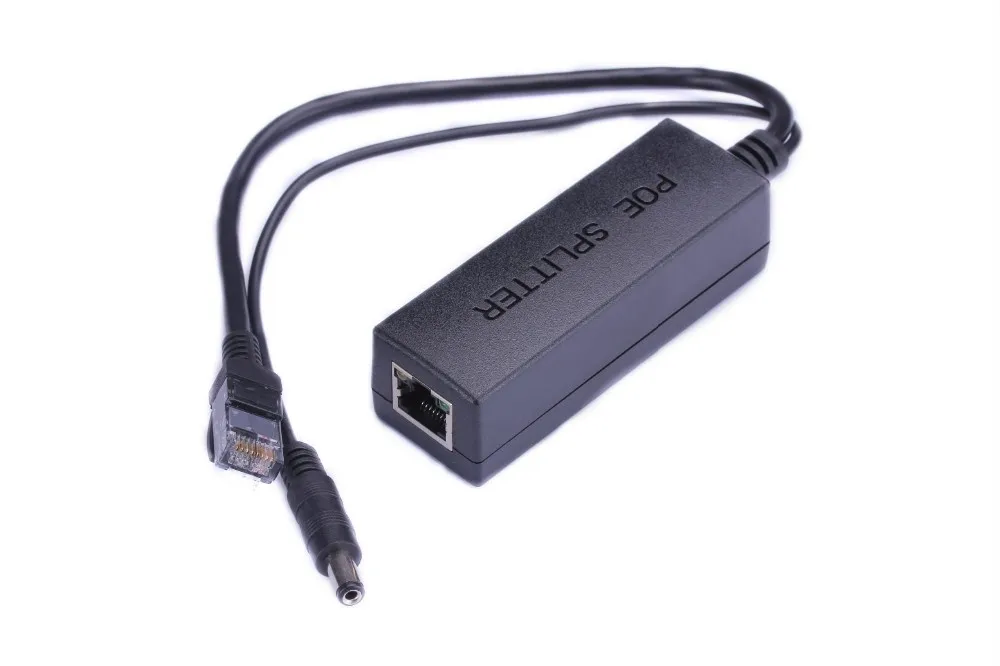

Detailed Images

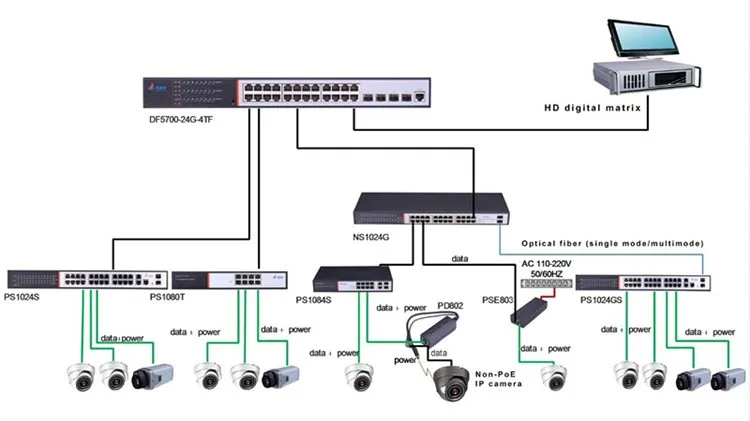

Application Pictures





If you want to know more about this, pls contact me .
Skype: fengrunda-sales5
Email: sales5[at]poetech.net
